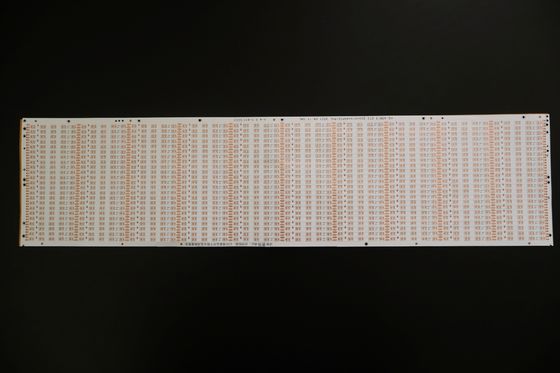

1. Product Overview of HQ046 LED Light Strip FPC

2. Technical Specifications and Customization Range

2.1 Dimensional Specifications

• Precision FPC: Maximum size: 240×500mm (limit: 250×500mm); minimum size: no restriction.
• Roll Material FPC: Maximum width: 240mm; maximum length: 100 meters.

2.2 Circuit Layer Configuration

• Single-layer FPC: Simple structure, suitable for low-complexity circuits in industrial controls, electronic instruments, and basic lighting systems.
• Double-layer FPC: Dual copper foil layers with enhanced vias for conductive paths, ideal for high-integration products such as mobile devices, automotive instruments panels, and mid-to-high-end LED light strips.
• Multi-layer FPC: Customizable for ultra-high-complexity applications requiring dense wiring and multi-signal transmission.

2.3 Solder Mask Color and Application

• Yellow Solder Mask: Universal option for most products (e.g., general cable assemblies) due to its cost-effectiveness and compatibility.
• Black Solder Mask: Preferred for high-end or light-absorbing applications (e.g., automotive lighting, smartphone backlights, LED displays) to reduce light reflection and improve visual consistency.
• White Solder Mask: Equipped with an additional white coating for enhanced reflectivity, suitable for lighting fixtures, LED displays, and medical aesthetic devices.

2.4 Copper Foil Thickness

• Precision FPC:
  • Single-layer: 18μm (0.5oz), 35μm (1oz)
  • Double-layer: 12μm (0.33oz), 18μm (0.5oz), 35μm (1oz)
• Standard FPC:
  • Single-layer: 18μm, 25μm, 35μm (1oz), 50μm
  • Double-layer: 18-25μm, 25-25μm, 35-35μm, 35-70μm

2.5 Minimum Line Width/Spacing

3. Core Performance and Quality Control

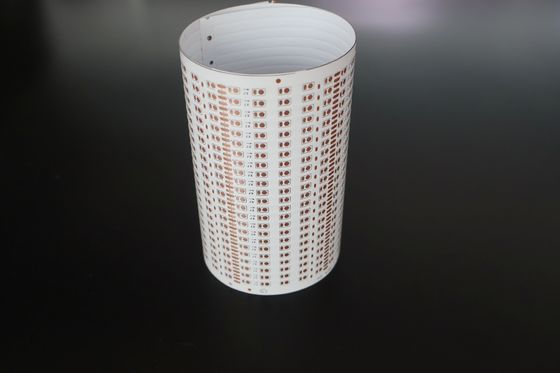

3.1 Flexibility and Bending Resistance

• A professional bending tester is used to evaluate each batch of materials.
• All materials undergo tens of thousands of bending cycles before mass production, ensuring resistance to fatigue failure in dynamic application scenarios (e.g., foldable lighting, curved surfaces).

3.2 Manufacturing Capabilities

• Factory area: Approximately 20,000 square meters
• Workforce: Over 800 employees, including 50 senior technical specialists
• Production lines: Specialized in both sample expediting and batch manufacturing

4. Customization Service Process

4.1 Consultation and Technical Support

• Personalized solution design
• Drawing optimization
• New product development support
• Professional technical consultation

4.2 Quotation

• Standardized technical processes
• High-quality material sourcing
• Efficient production management

4.3 Design and Integration

• Substrate production
• Circuit wiring and schematic design
• Mold development
• SMT (Surface Mount Technology) and through-hole assembly
• Steel mesh fabrication
  All processes comply with international certifications to ensure reliability.

4.4 Sample Fabrication

5. Certifications and Notes

• Certifications: The product line holds multiple international system certifications (details available upon request), ensuring compliance with global industry standards.
• Image Disclaimer: All product images on the official platform are authentic. Minor color variations may occur due to lighting, shooting angles, or display resolution differences.
• Continuous Upgrade: Our FPC products undergo annual updates and upgrades to align with emerging technological requirements.
