Product Overview

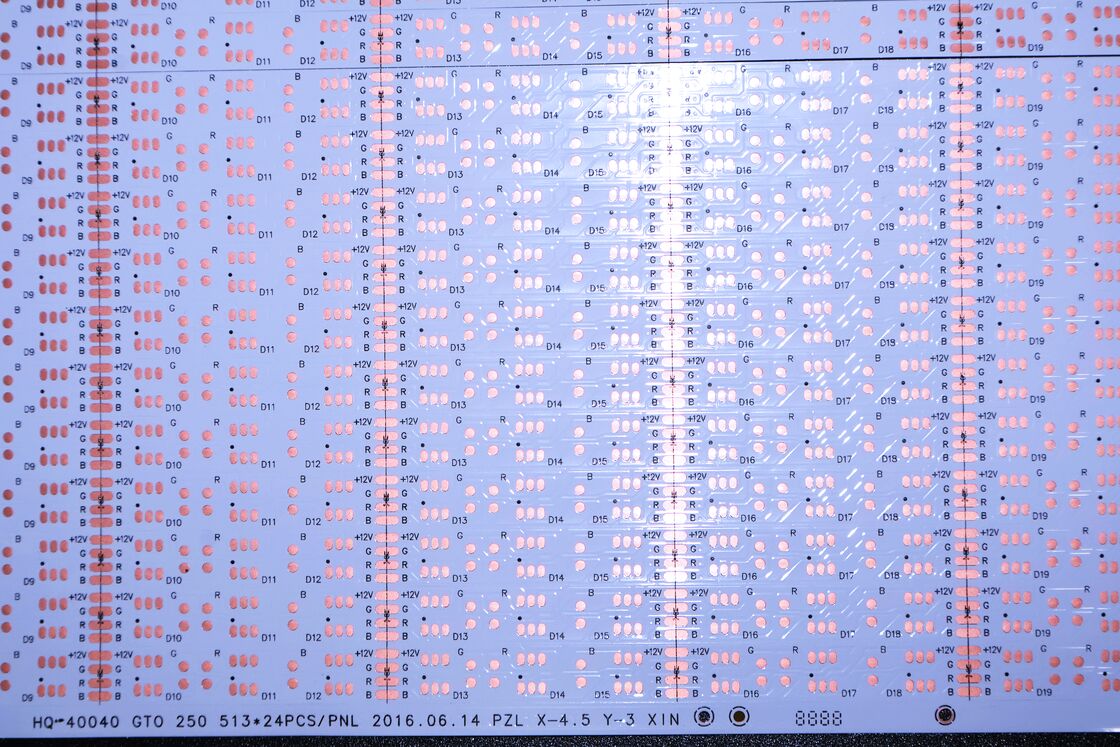

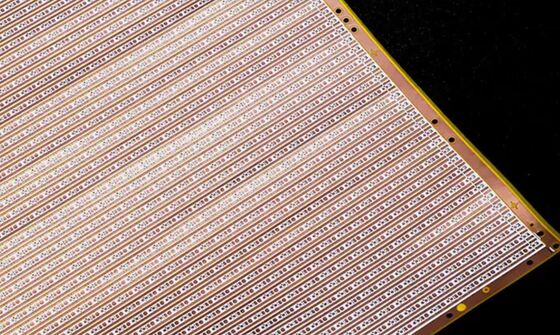

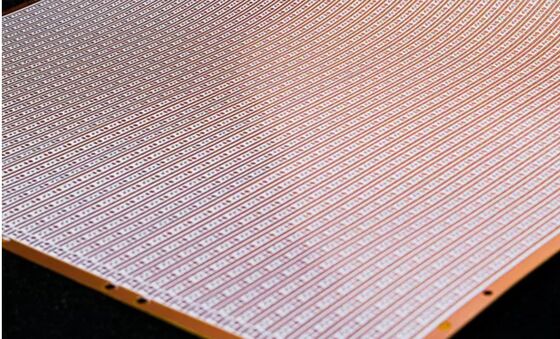

PFWW06149 is an advanced two-layer flexible printed circuit board (2FPCB) specifically designed for high-efficiency LED light strips. With 2835 - 180 LEDs densely arranged on a 5mm-wide double-sided white film board, this product offers excellent brightness, uniformity, and energy efficiency for commercial and residential lighting applications. Key Features and Advantages 1. High-performance Design
◦ 2835 LED chips: Super-bright surface-mounted LEDs (180 LEDs per meter) provide intense and stable illumination.
◦ 24V low voltage: Ensures stable operation, reduces heat generation, and enhances safety.
◦ Double-sided white film: Maximizes light reflection and diffusion for excellent brightness uniformity. 2. Durable and Flexible Construction
◦ Two-layer FPCB: Combines flexibility with durability, suitable for curved surfaces and tight spaces.
◦ 5mm ultra-thin profile: Ideal for concealed installation in grooves, cabinets, or decorative lighting.
◦ High-quality materials: Flame-retardant substrate and copper traces ensure long-term reliability. 3. Optimized Versatility
◦ Wide compatibility: Seamlessly integrates with 24V LED drivers and controllers.
◦ Easy customization: Can be cut at marked intervals (every 5cm/10cm) for custom lengths.
◦ Double-sided adhesive backing: Allows for easy installation on clean, dry surfaces. Technical Specifications
• Model: PFWW06149
• LED type: 2835 surface-mounted (0.2W per LED)
• Voltage: 24V DC
• LED density: 180 LEDs per meter
• Board width: 5mm
• PCB thickness: 0.5mm
• Color temperature: Adjustable options (2700K - 6500K)
• Color rendering index: ≥80
• Service life: Over 50,000 hours Application Scenarios
• Residential use: Under-cabinet lighting, stairway decorative lighting, bedroom ambiance creation.
• Commercial use: Retail displays, sign backlighting, hotel decoration.
• Industrial use: Warehouse work lighting, safety passage lighting. Packaging Options
• 25 pieces per reel: Suitable for small projects or sample purchases.
• 50 pieces per reel: An economical bulk option for large-scale installations. Why Choose This Product
• Energy-saving: Reduces power consumption by up to 50% compared to traditional lighting.
• Plug-and-play: Pre-soldered connectors for immediate setup.
• Quality certified: Uses components that comply with RoHS, CE, and UL standards. Place your order now and transform your space with a professional-grade LED lighting solution!
Each reel offers a choice of 25 or 50 pieces. Custom lengths and color temperatures are available upon request.

Product description:

Product model:HQ30149
Product Name: Flexible LED Strip Circuit Board
Product features: Double layer board with double-sided white film Black Character OSP Antioxidant

Product specifications:2025-75 led/PCS-5*501.5-12V double-sided board white film FPC Board

FPC design parameters

Main technical parameters:

1.About Dimensions:

Precision FPC: The maximum size is240X500mm (limit250X500mm), and there is no limit to the minimum size. Roll material board: maximum width 240. maximum length 100 meters.

2. Number of layers on the board

• The single-layer board structure is simple and generally used in industrial control, electronic instruments, and other fields with relatively simple circuits.
• Compared to single-layer FPC, double-sided boards have two layers of copper foil, increased vias, and formed conductive paths. They are generally used in mobile phones,automotive instruments and other products.

3. Solder mask color

The solder mask colors of FPC are yellow, black, and white. Suggest using yellow,Yellow film is suitable for the vast majority of products,such as various cable products. Black film is commonly used in high-end or light absorbing products,such as cars, mobile phones, LED displays, etc. White film has an additional layer of white coating compared to yellow film, and is often used in products that require reflection,such as lighting fixtures, LED displays, medical beauty products, etc.

4. Copper foil thickness

• Precision FPC single panel options include 18um (0.5oz) and 35um (1oz);
• The precision FPC double-layer board can be selected from 12um (0.33oz),18um (0.5oz),and 35um (1oz).
• Ordinary FPC single panel can choose 18um/25um/35um (1oz)/50um;
• Ordinary FPC double-layer boards can be selected from 18-25um,25-25um,35-35um,or 35-70um.

5. Minimum line width/line spacing

Under normal circumstances, the smaller the difficulty, the higher the defect rate, and it is generally recommended to use at least 3mil.

Service process

1.Consulting

16 years focus on FPC flexible circuit board design and R & D manufacturing, to provide customers with personalized solutions, design drawings, development of new products and provide related technical support.

2.Offer

Sample or batch quotation of the same type of technology, materials, advanced technology, price concessions, greatly for customers to save costs.

3.Profession

Our company has Germany, Japan, Taiwan and other regions of advanced equipment and production technology, professional production, scale. Our factory covers an area of nearly 20,000 square meters, with more than 800 employees and 50 senior technical backbone personnel.

4.Design

Provide solutions to customers to finalize a number of international system certification, can provide substrate production, wiring, principle design, mold, patch, plug-in and open steel mesh one-stop service, 16 years of professional and technical level precipitation, worthy of your choice and trust.

5.Sample Making

We specialize in FPC sample making and customization services, the company has an expedited production line, such as: flexible circuit board dual panel samples can be completed within 5-7 days.
